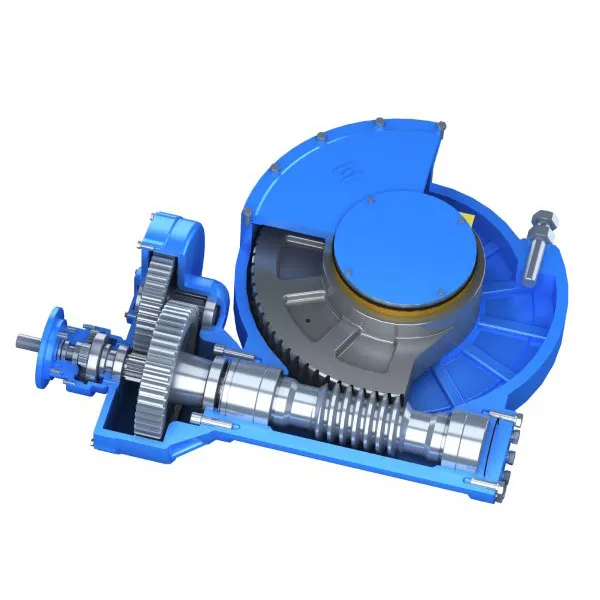

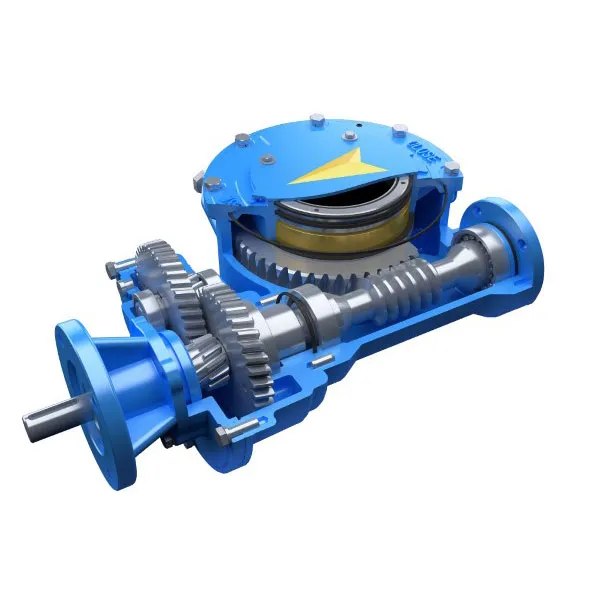

XKM Series Quarter-turn Gearbox

• Output torque up to 1,600,000 N·m
• Ratios ranging from 38:1 to 28881:1
• Fully sealed structure, good waterproof effect, standard protection lP67
• High-performance ductile cast iron worm gear with reliable strength
• High sealing oil injection design, convenient oil injection, good sealing
• Worm gear wear-resistant structure design, longer lifetime, higher efficiency
• Alloy steel quenched worm, reliable strength, good meshing
• Large range of speed ratio options, convenient selection
• Input flange optional, flexible choice
• Double sealing structure of indicator cover, good internal valve stem sealing
• Well sealed mechanical limit position, repeated adjustment does not affect the sealing
• Detachable spline bushing, convenient processing and preparation, angle can be fine-tuned
• Easy to remove the shaft sleeve circlip, easy to disassemble, no special tools required
• Working environment, -20℃ to +120℃

• IP68
• Low temperature -40℃/-60℃
• Electric input flange
• Output flange
• Al Bronze worm gear

 Note:

1. The designs, specifications, dimensions in this catalog are subject to change without notice.
2. Please contact us to learn more details of our products.
